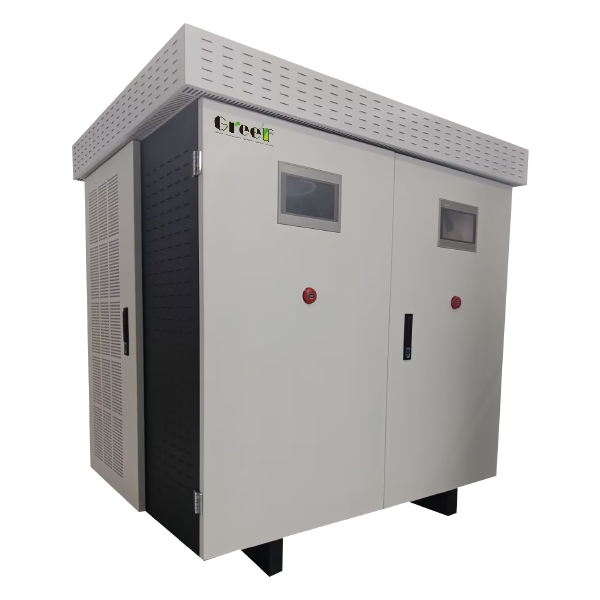

100KW-1000KW AC Generator Hybrid Converter
Product Introduction
GREEF ENERGY multi-functional converter integrates the capabilities of AC-to-DC rectification for PM generators, battery charging, DC-to-AC inversion, and an energy management system. Featuring a configurable dual LCD touchscreen, it utilizes advanced converter technology to achieve stable voltage/frequency control for PMSGs, ensuring seamless Load power supply. It can also be configured to switch to a grid-tied mode for operation and grid charging.

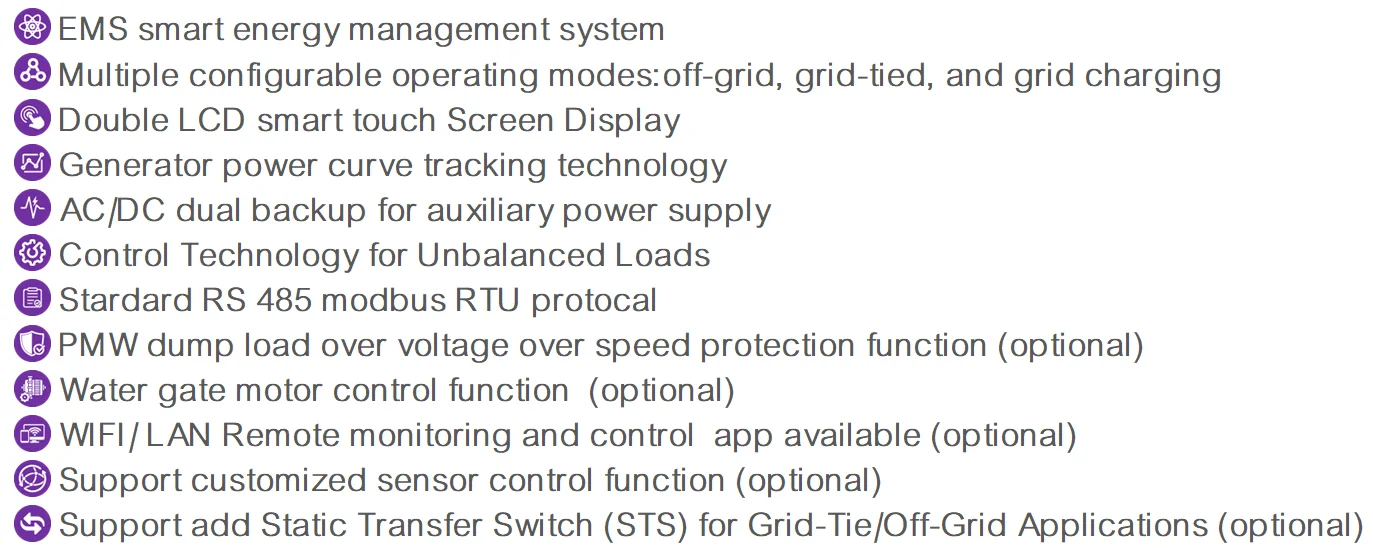

Product Features
- EMS smart energy management system
- Multiple configurable operating modes:off-grid, grid-tied, and grid charging
- Double LCD smart touch Screen Display
- Generator power curve tracking technology
- AC/DC dual backup for auxiliary power supply
- Control Technology for Unbalanced Loads
- Stardard RS 485 modbus RTU protocal
- PMW dump load over voltage over speed protection function (optional)
- Water gate motor control function (optional)
- WIFI/ LAN Remote monitoring and control app available (optional)
- Support customized sensor control function (optional)
- Support add Static Transfer Switch (STS) for Grid-Tie/Off-Grid Applications (optional)
Product Parameters
| Model | ACPCS-100kt | ACPCS-150kt | ACPCS-200kt | ACPCS-250kt | ACPCS-300kt | ACPCS-500kt |
| Generator AC Input side parameters | ||||||
| Rated power(kW) | 100 | 150 | 200 | 250 | 300 | 500 |
| Rated voltage(Vac) | ≥240 | |||||
| Optimal generator rated voltage(Vac) | 450 | |||||
| Start voltage (Vac) | ≥180 | |||||
| AC votlage working range(Vac) | 150~550 | |||||
| Maximum AC current(A) | 241 | 361 | 481 | 451 | 722 | 1203 |
| Battery input Data | ||||||
| Battery type | Lithium-ion | |||||
| Battery voltage range(Vdc) | Customizable | |||||
| Rated battery voltage(Vdc) | 400-900(Customizable) | |||||
| Max charging&discharging Current(A) | 250 | 362.5 | 600 | 362.5 | 750 | 651 |
| Output side parameters (grid-connected) | ||||||
| Rated charging/discharging power(kw) | 100 | 150 | 200 | 240 | 300 | 500 |
| Maximum charge and discharge power(kw) | 120 | 170 | 240 | 170 | 360 | 600 |
| Rated charge and discharge current(A) | 144 | 209 | 289 | 209 | 433 | 722 |
| Maximum charge-discharge current(A) | 173 | 245 | 346 | 245 | 520 | 866 |
| Rated grid voltage(V) | 400 | |||||
| Permissible grid voltage range(v) | 300-460 | |||||
| Rated grid frequency(Hz) | 50/60 | |||||
| Current total harmonic distortion rate(% (at rated power)) | <3 | |||||
| Power factor | >0.99 | |||||
| Power factor range | -1~1 | |||||
| Overload capacity(Pn,continuous for I minute) | 1.2 | |||||
| AC side parameter (off-grid) | ||||||
| Rated input voltage(V) | 400 | |||||
| Voltage deviation(%) | ±2 | |||||
| etotalharonicdistortionrate(% (linear load)) | <3 | |||||
| Protection | ||||||
| Over voltage &speed protection | Optional | |||||
| AC short-circuit protection | Supported | |||||
| AC output overcurrent protection | Supported | |||||
| Surge protection | Level 2 | |||||
| Basic parameters | ||||||
| Maximum efficiency(%) | 95% | |||||
| Topology | AC-DC Reticifier ,DC- DC Buck boost ,DC-AC Invertor.EMS | |||||
| Ambient temperature(℃) | -40~60 | |||||
| Protection level | IP20 | |||||
| Display Contents | Generator speed(rpm),Input voltage (Vdc), Input current(Vac) ,Output power(kW), Grid voltage (Vac),Grid current(A), Power generate today(kWh),Power generate this month, Power generate last month, Power generate this year, Power generate last year,Power Curve setting. | |||||
| Cooling method | Intelligent air cooling | |||||
| Maximum operating altitude(m (derating when >3,000m)) | 4,000 | |||||
| Standby power consumption(W) | <50 | |||||
| Display | LCD SMART Touch Screen | |||||
| Communication mode | Ethemet, RS485, WIFI | |||||
For more detailed information on additional models, please contact us!

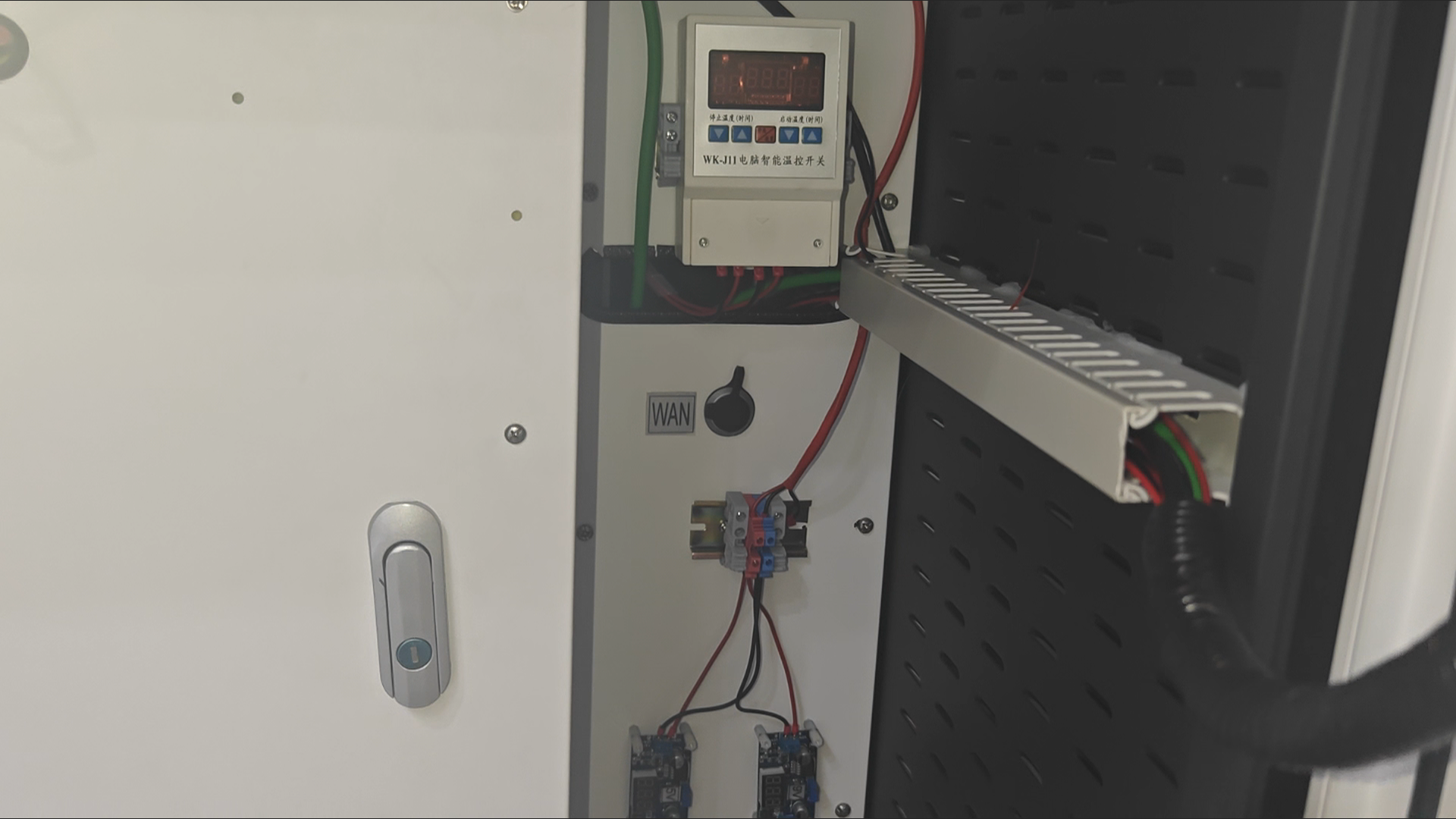

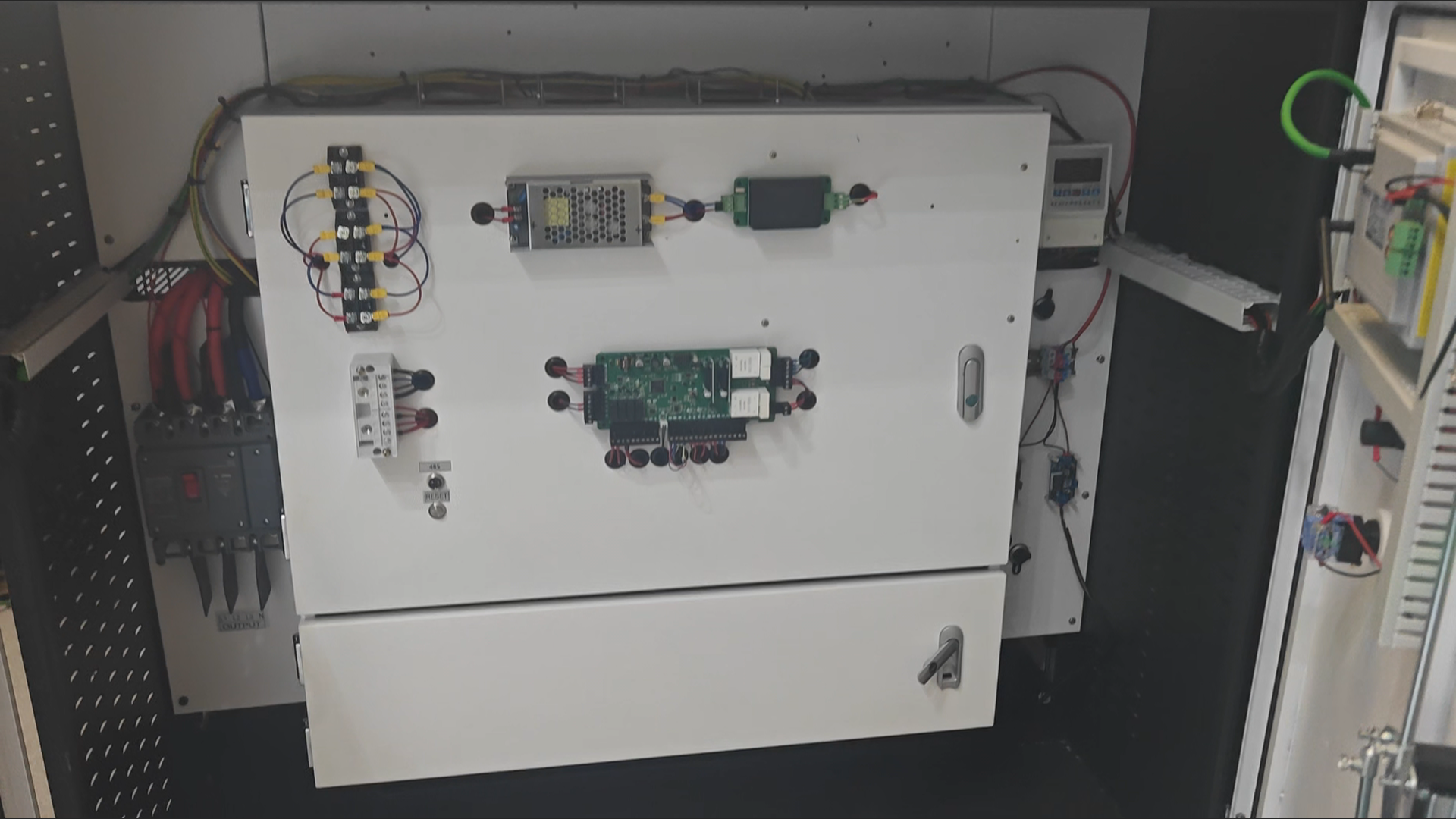

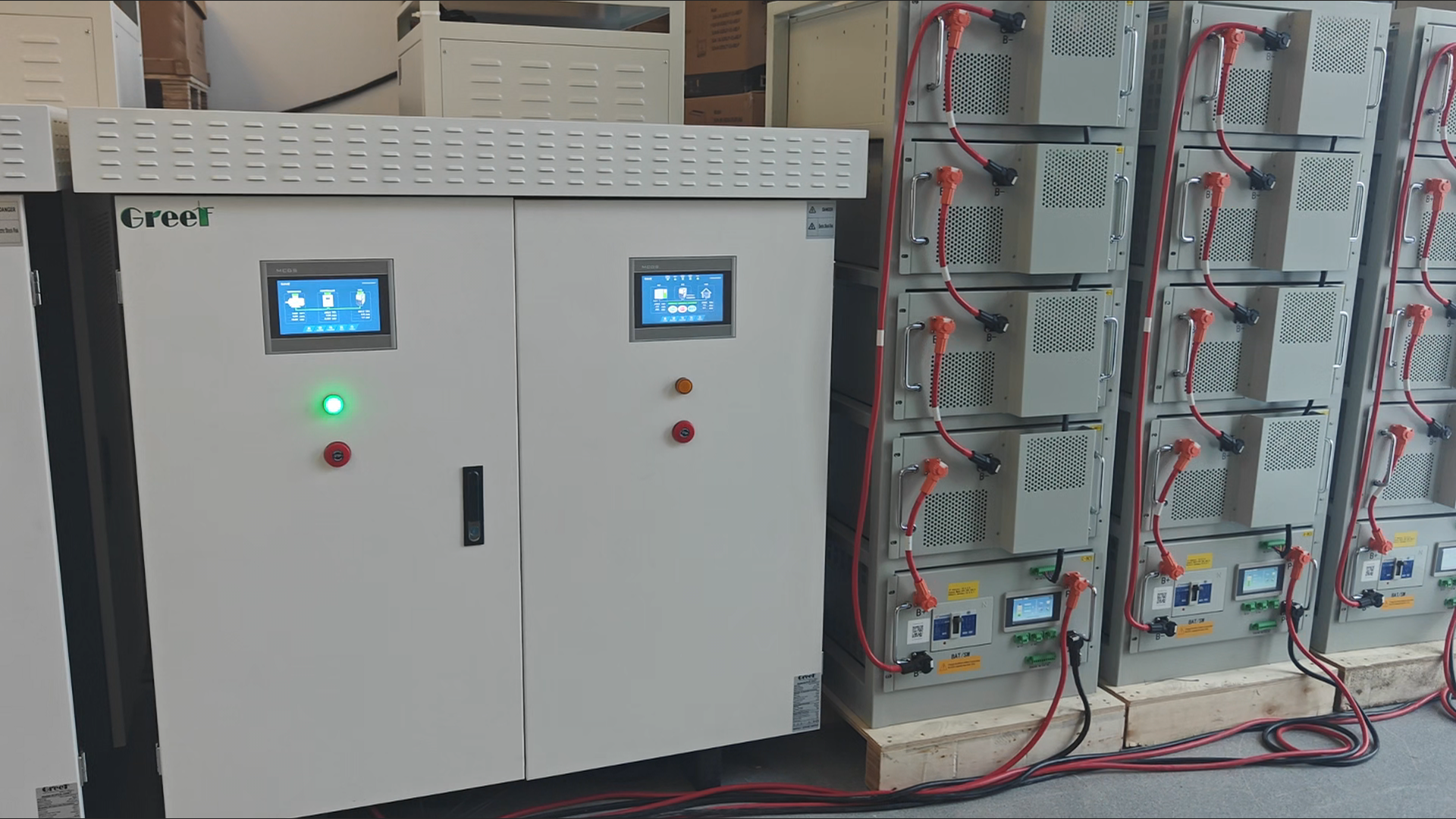

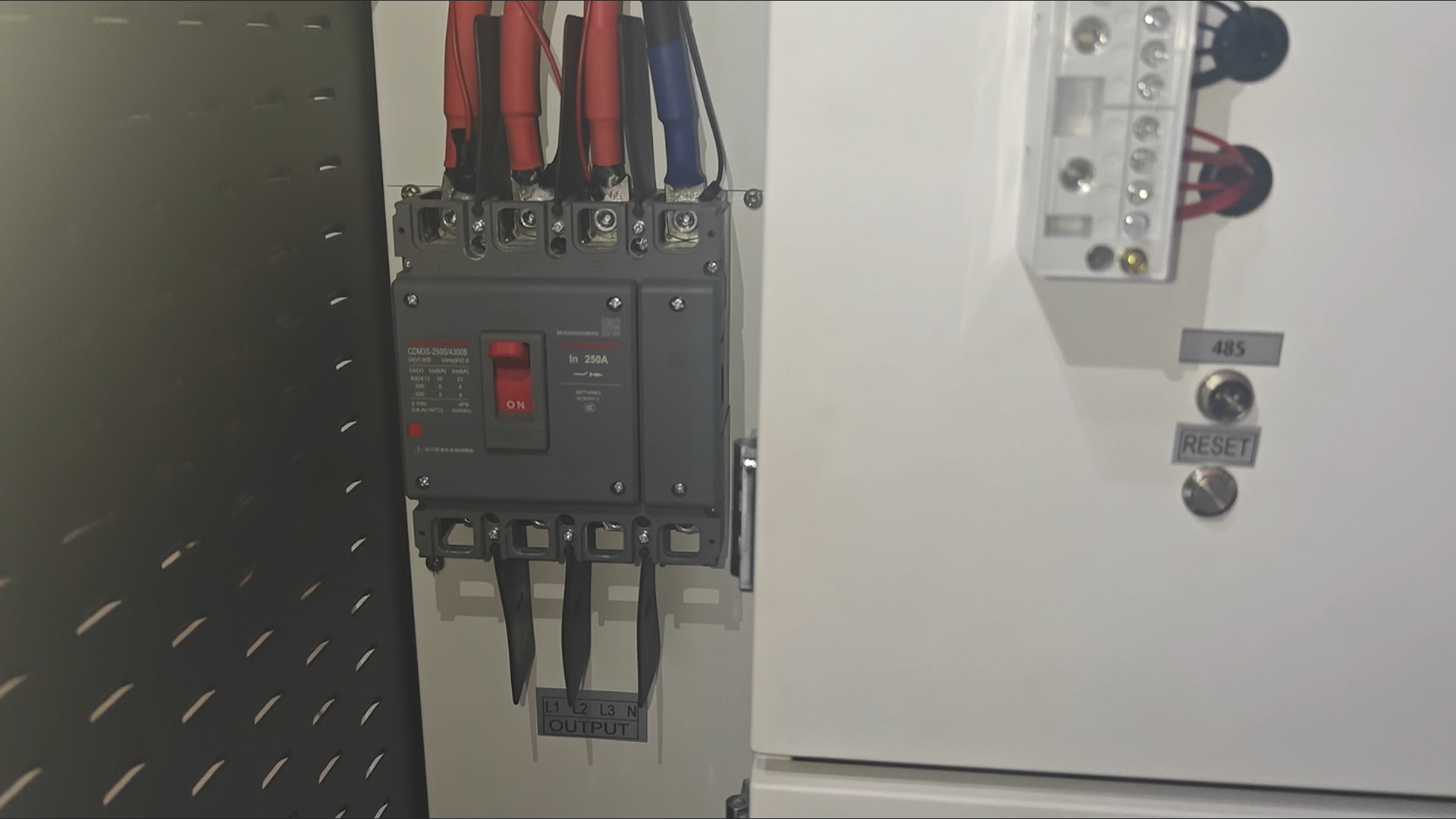

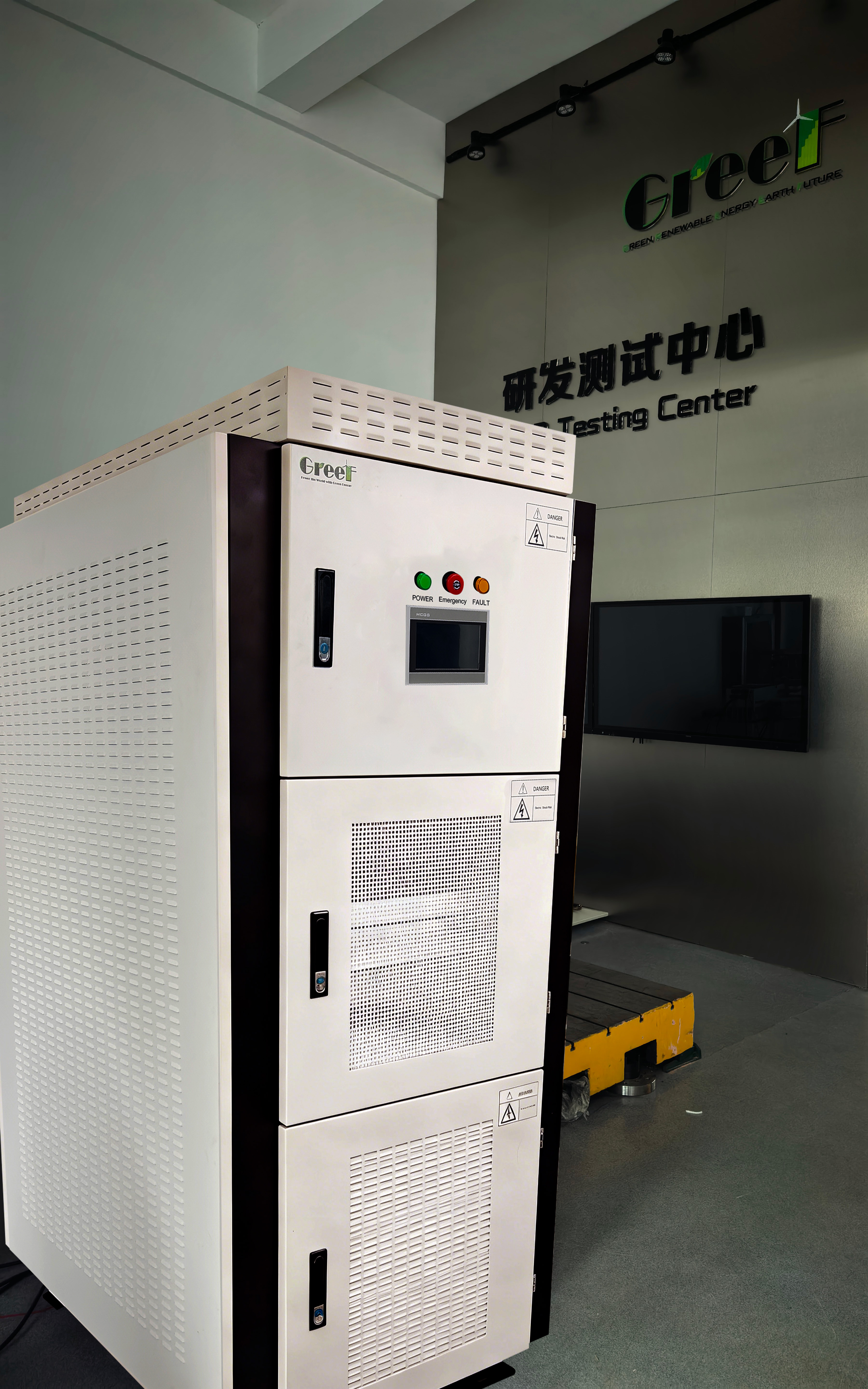

Product Details

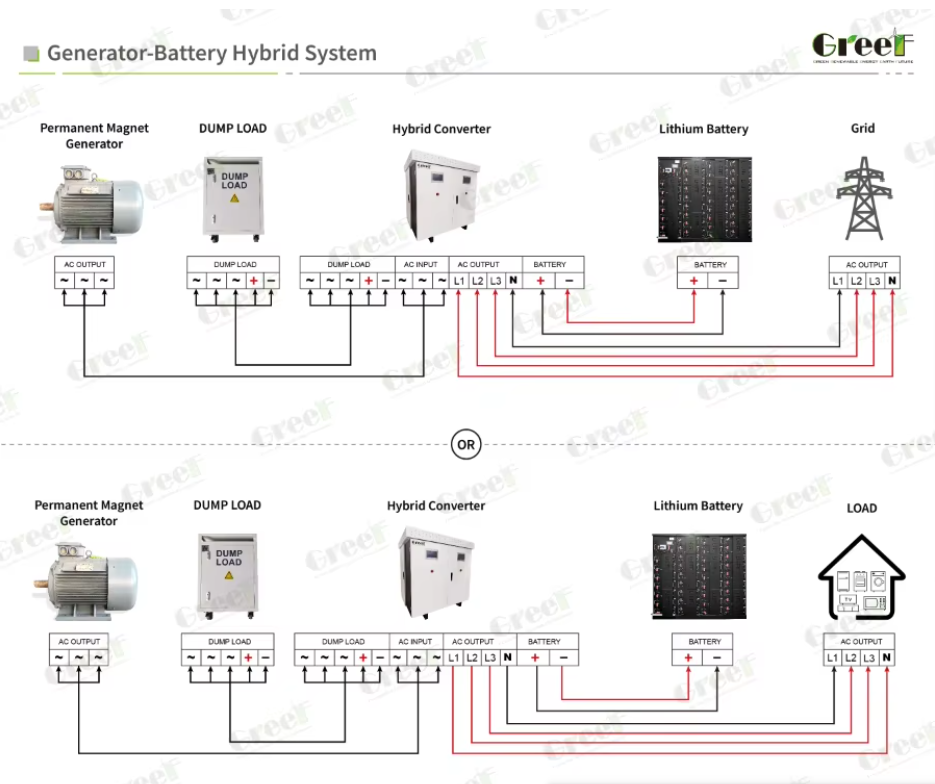

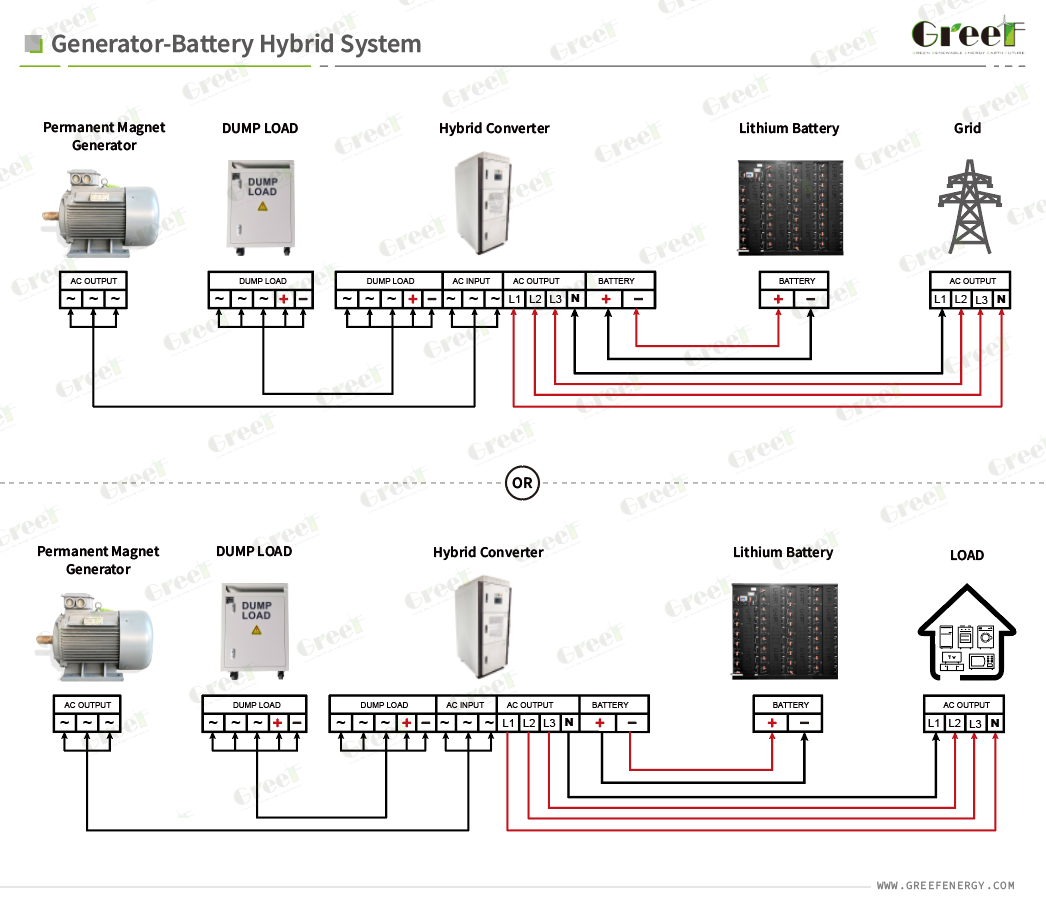

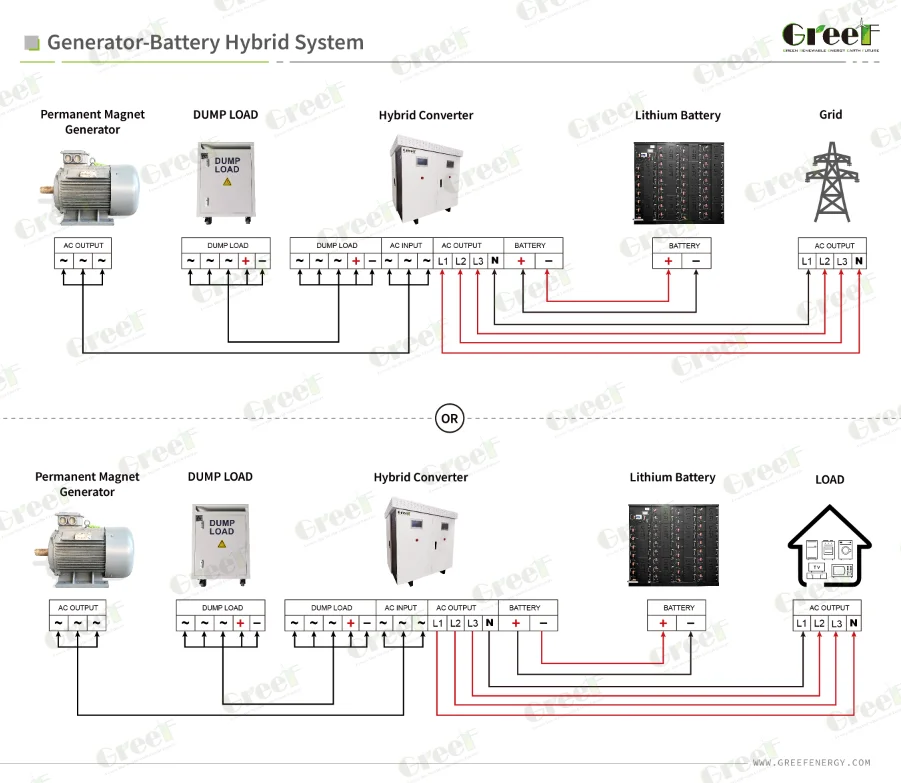

System Solution

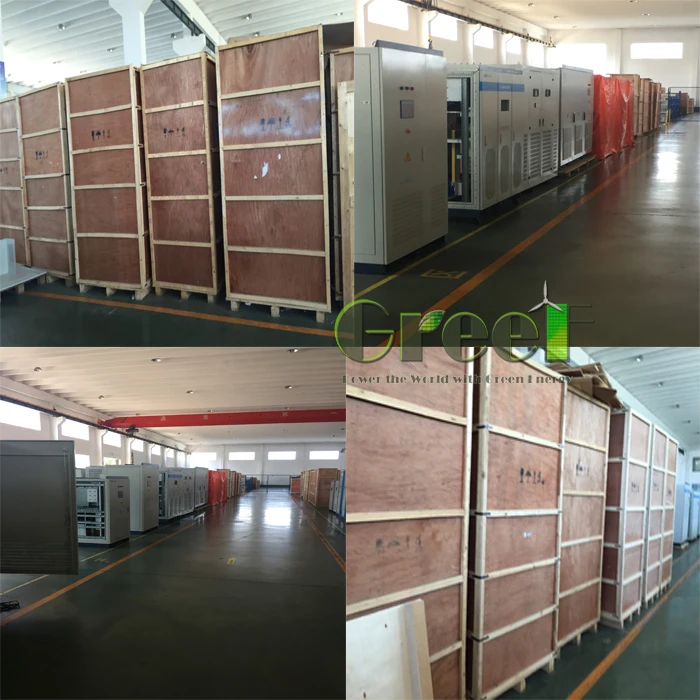

Packaging
