15kWh 48/51.2V 280/314Ah Vertical Type LiFePO4 Battery
The product adopts stand type design, beautiful shape, and convenient movement; including the mainstream market inverter protocol, directly communicates; adopts a comprehensive and multi -level battery protection strategy and fault isolation measures to ensure the safe operation of the system.Widely used in small commercial and family energy storage.
Product Paramenters
|
Model
|
GBP48-280H
|
GBP48-314H
|
GBP51.2-280H
|
GBP51.2-314H
|
|
Nominal volt（V）
|
48
|
51.2
|
||
|
Cell specification (Ah)
|
280
|
314
|
280
|
314
|
|
Nominal capacity（Ah）
|
280
|
314
|
280
|
314
|
|
Working volt range
|
42~54.75
|
44.8~58.4
|
||
|
Recommended charging volt（V）
|
51.75
|
55.2
|
||
|
Standard charging current (A)
|
100
|
|||
|
Maximum continuous charging current(A)
|
150
|
|||
|
Standard discharging current（A）
|
100
|
|||
|
Maximum discharging current（A）
|
150
|
|||
|
Proper temperature（℃）
|
-30～60 (Recommended 10～35)
|
|||
|
Allowable humidity range（%RH）
|
85
|
|||
|
Storage temperature（℃）
|
-20～65 (Recommended 10～35)
|
|||
|
Protection level
|
IP20
|
|||
|
Cooling method
|
Natural air cooling
|
|||
|
Maximum size（D*W*H）mm
|
246*480*990
|
|||
|
Net weight (kg)
|
138.5
|
142.5
|
141
|
145
|

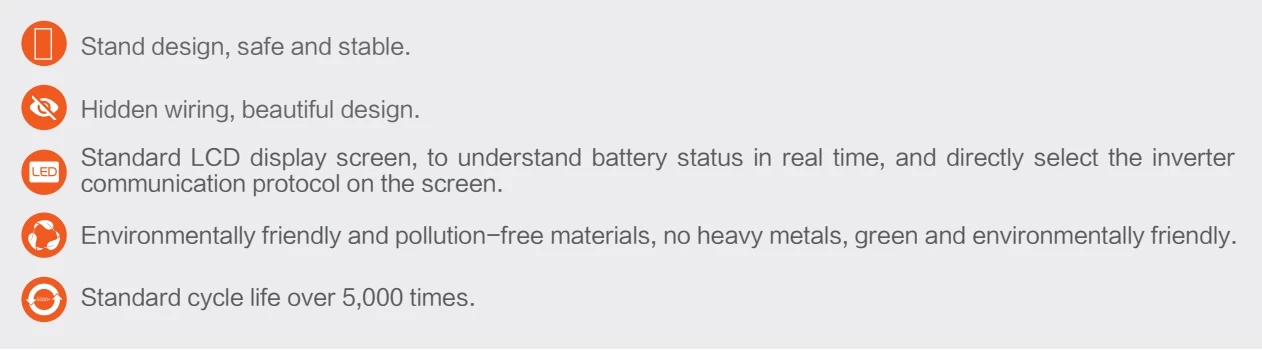

Product Details

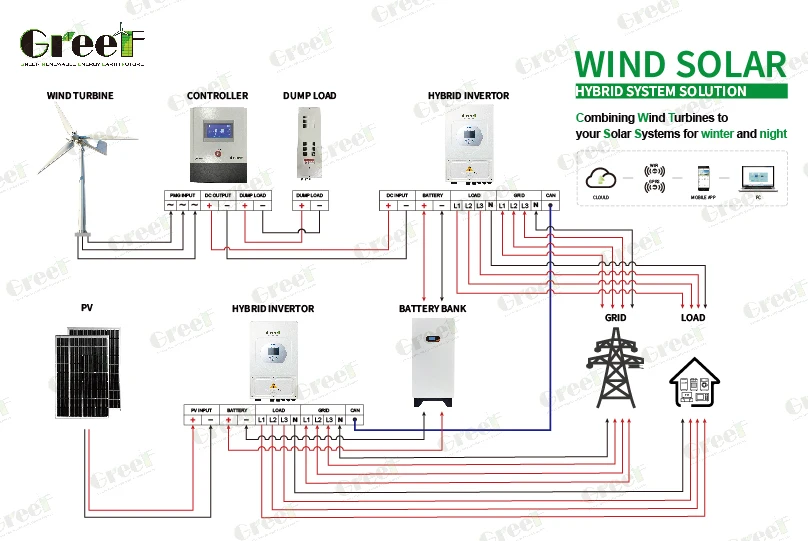

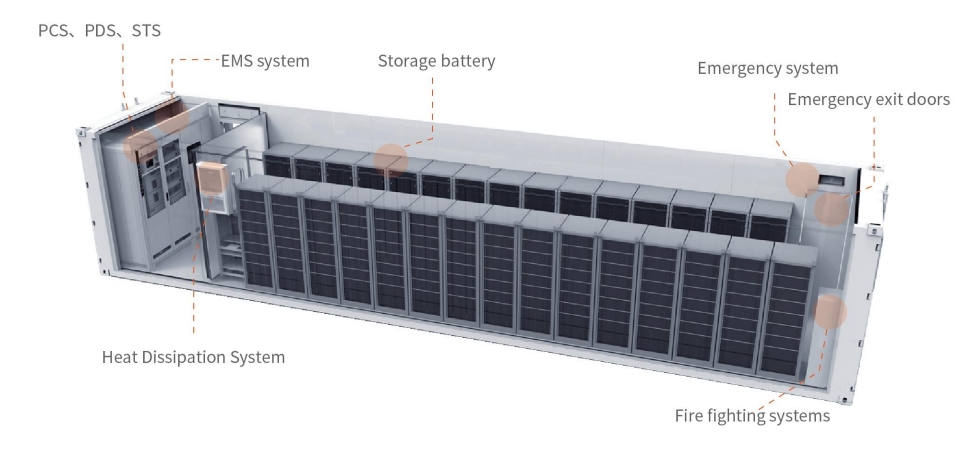

System Solution
This system diagram is for reference only, if you have other requirements, please contact us!

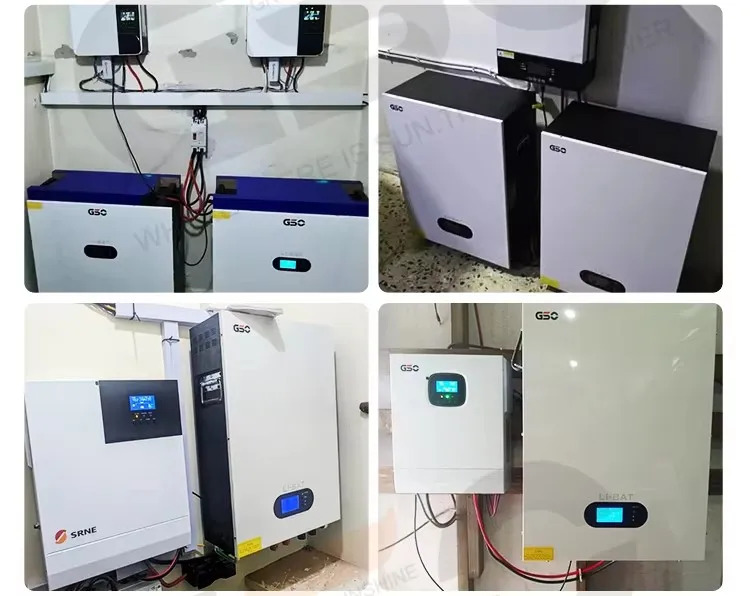

Project case

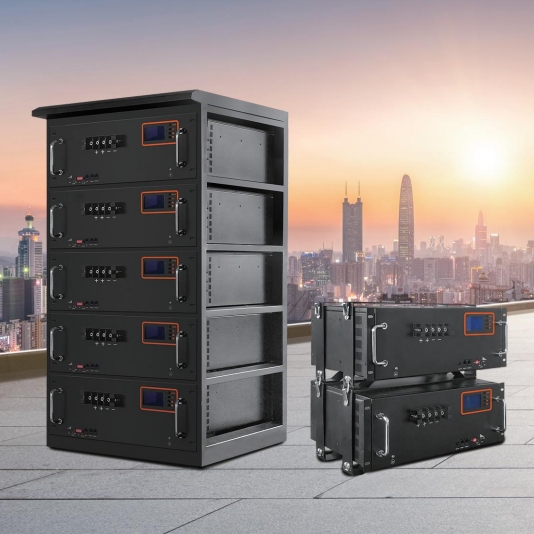

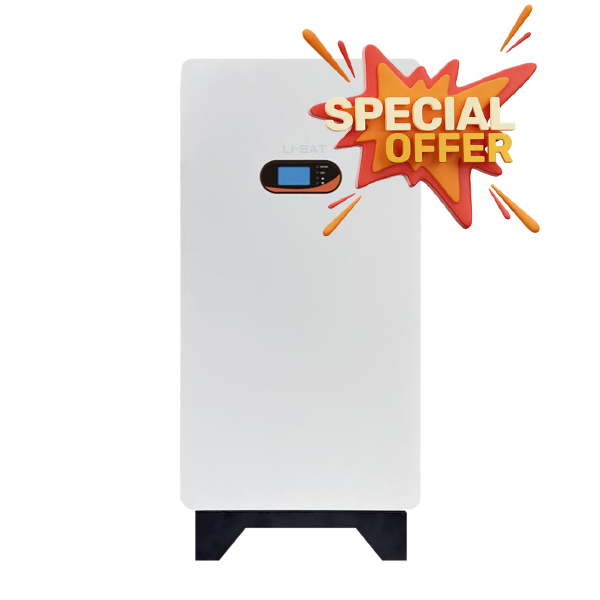

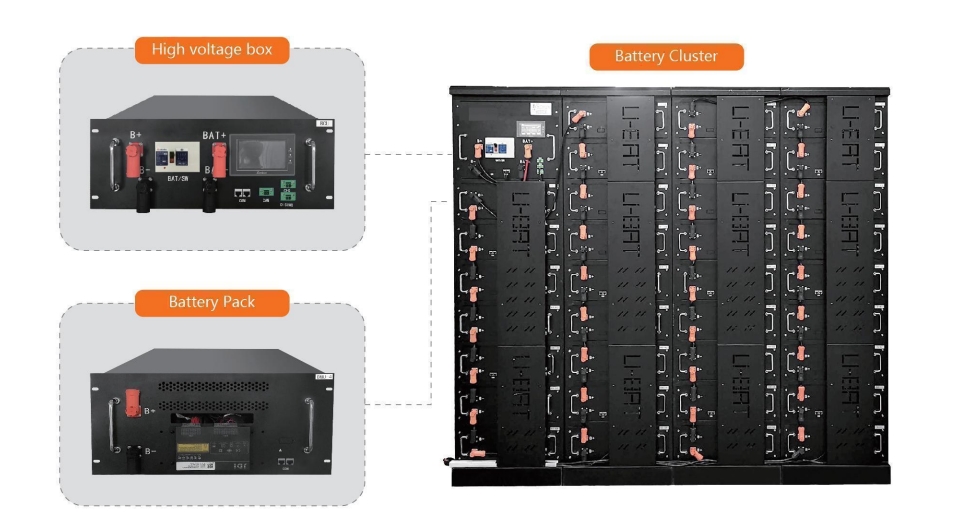

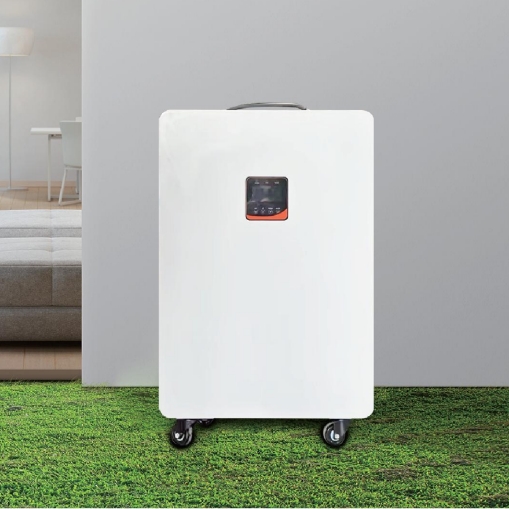

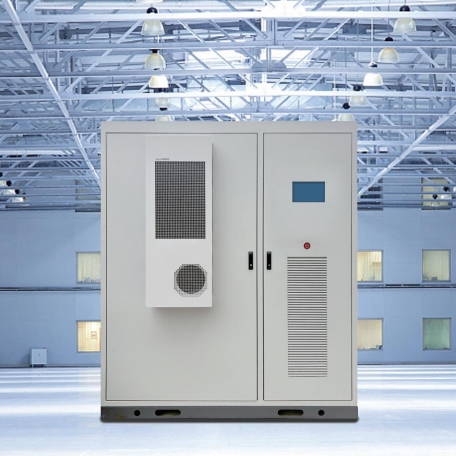

Other Product
