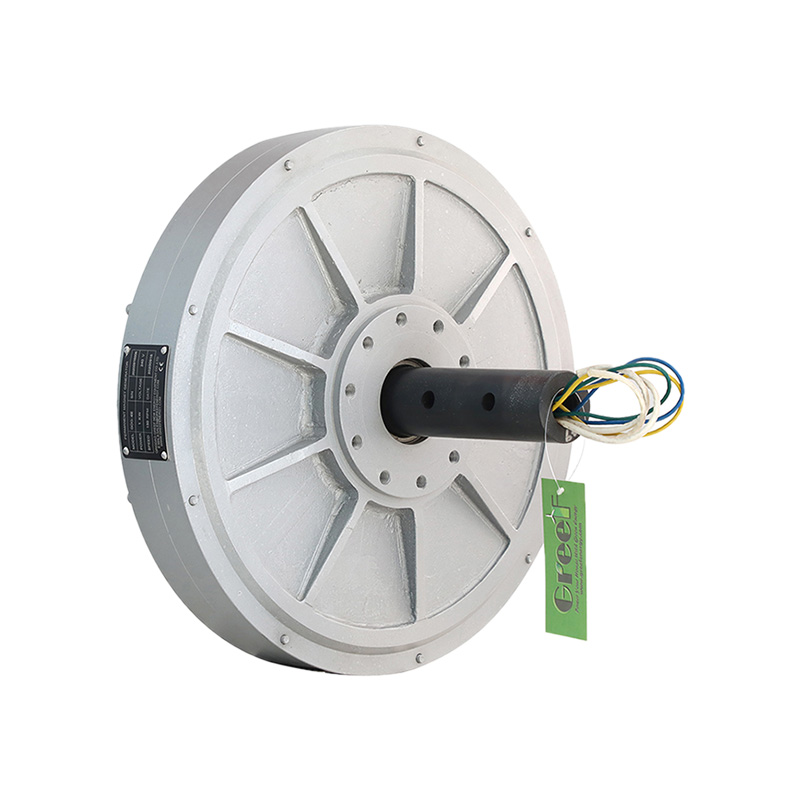

Axial Flux Coreless Permanent Magnet Generator (Outer Rotor)
Product Introduction
This Coreless Permanent Magnet always being used in vertical axis wind turbine, and other generator system which requests very lowstart torque and low rated rotate speed, low start wind speed, low weight and small size.
|
1
|
Torque Patent Technology: use newest “Precise Coil” technology. No hysteresis and gear notches effect make the start torque very
low <0.3N.M
|
|
2
|
Original Structure: use disc coreless motor to take place traditional motor makes it less volume and weight.
|
|
3
|
Higher Utilization: use special coreless motor technology to eliminate the use bottlenecks of lower speed wind energy.
|
|
4
|
Higher Reliability: special structure make it bigger ratio of power to volume, power to weight and have long life of 8 times
longer than traditional motor.
|
|
5
|
Gearless, direct drive, low RPM generator.
|
|
6
|
High standard, quality components for use in harsh and extreme environments for wind turbines
|
|
7
|
High efficiency and Low mechanical resistance energy loss
|
|
8
|
Excellent heat dissipation due to the Aluminum alloy outer frame and special internal structure.
|
|
9
|
Customized : Voltage, Speed, Power, Frequency etc.
|
|
10
|
H class insulation, vacuum pressure impregnation.
|
|
11
|
Excellent heat dissipation , also can add fan cooling
|

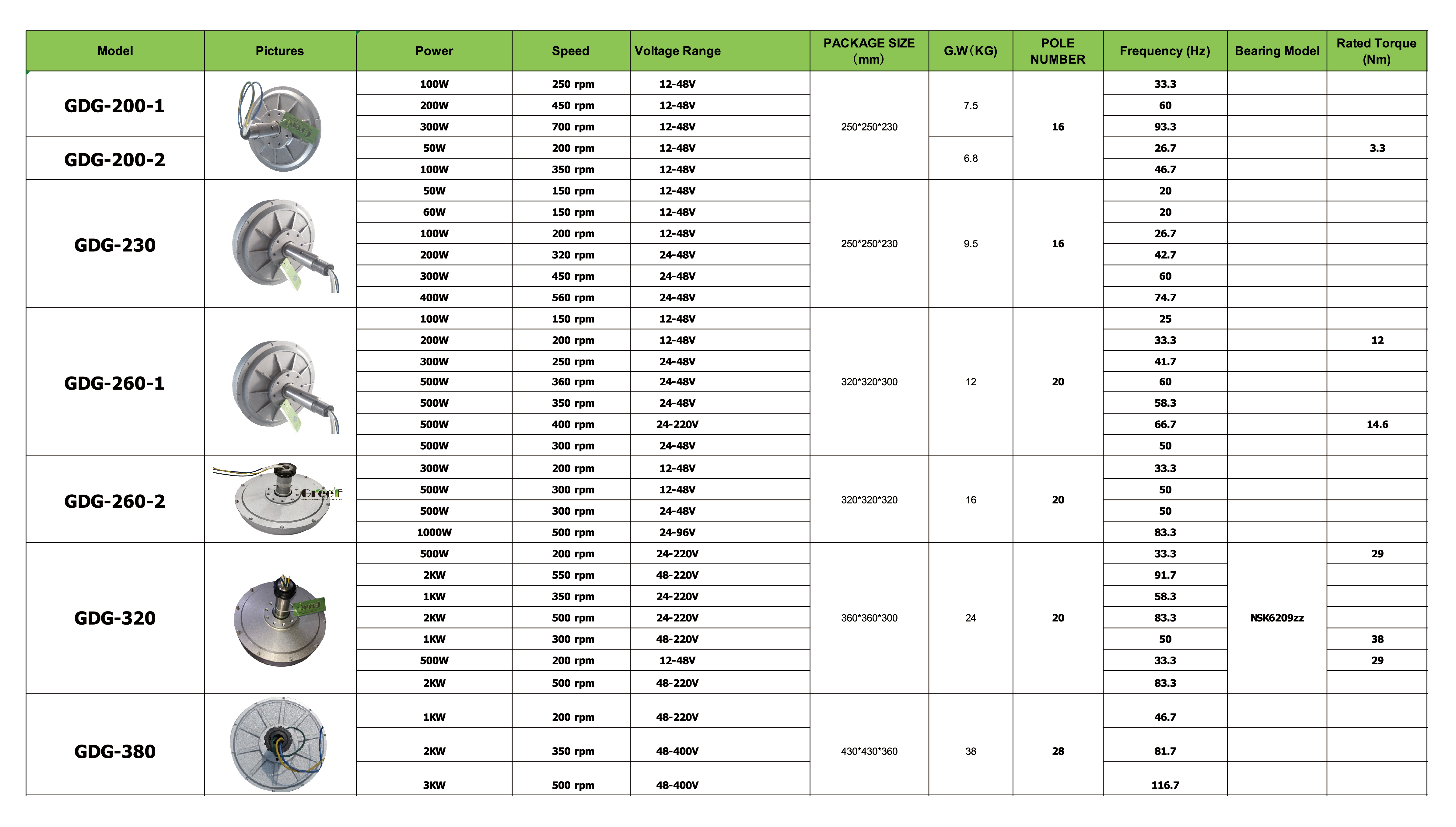

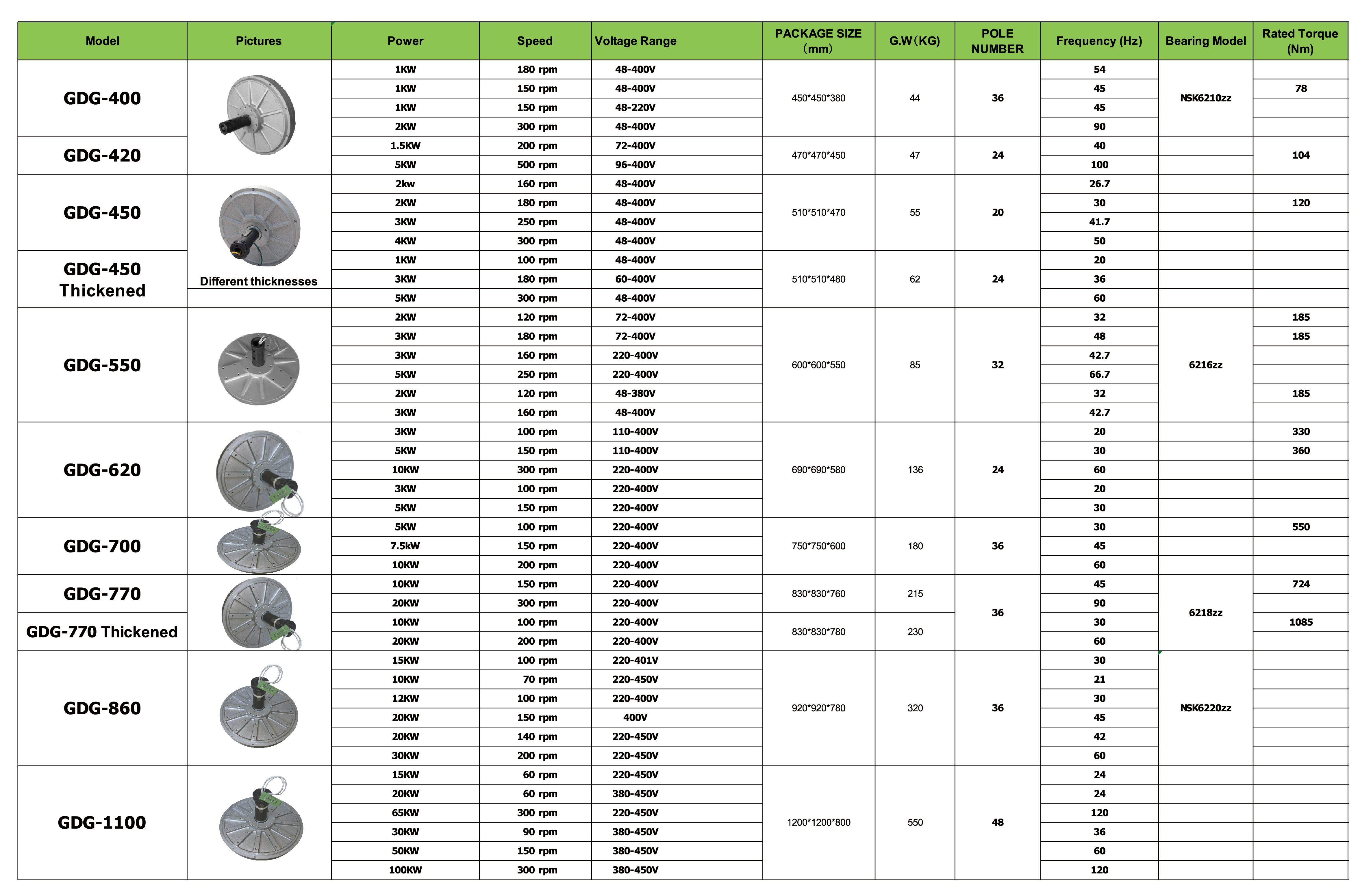

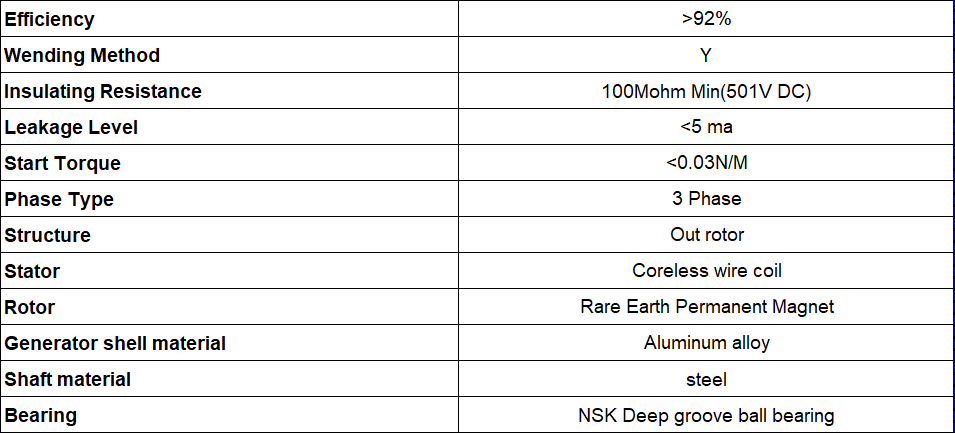

Product Parameters

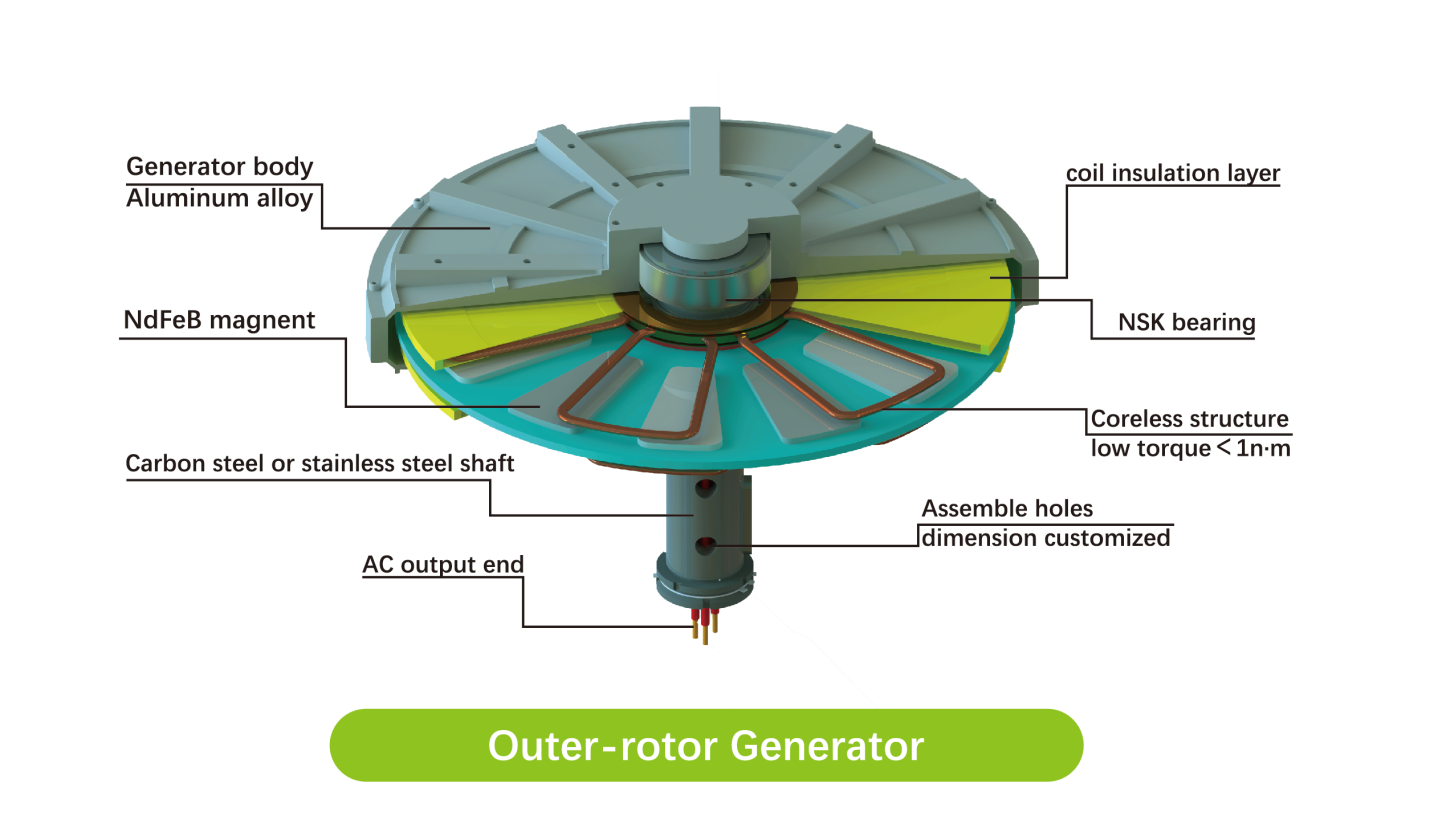

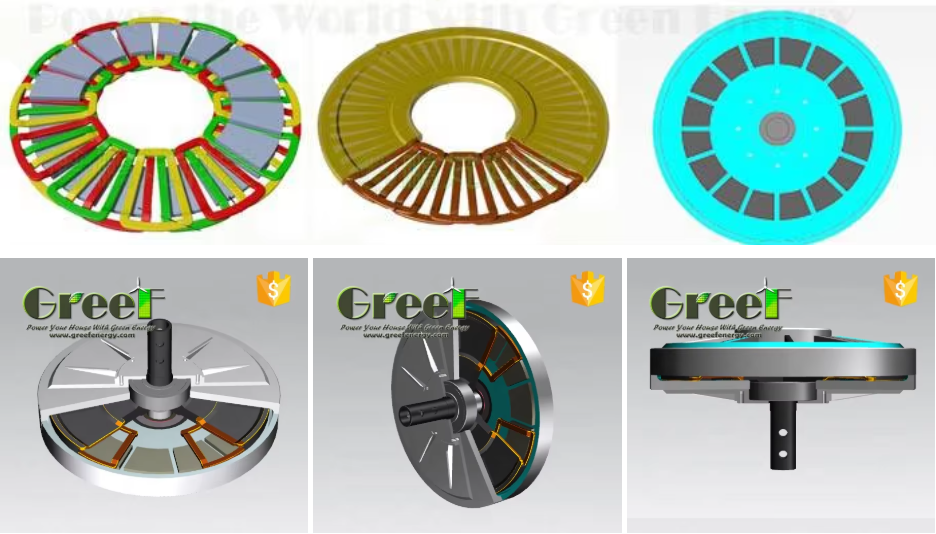

Product Structure

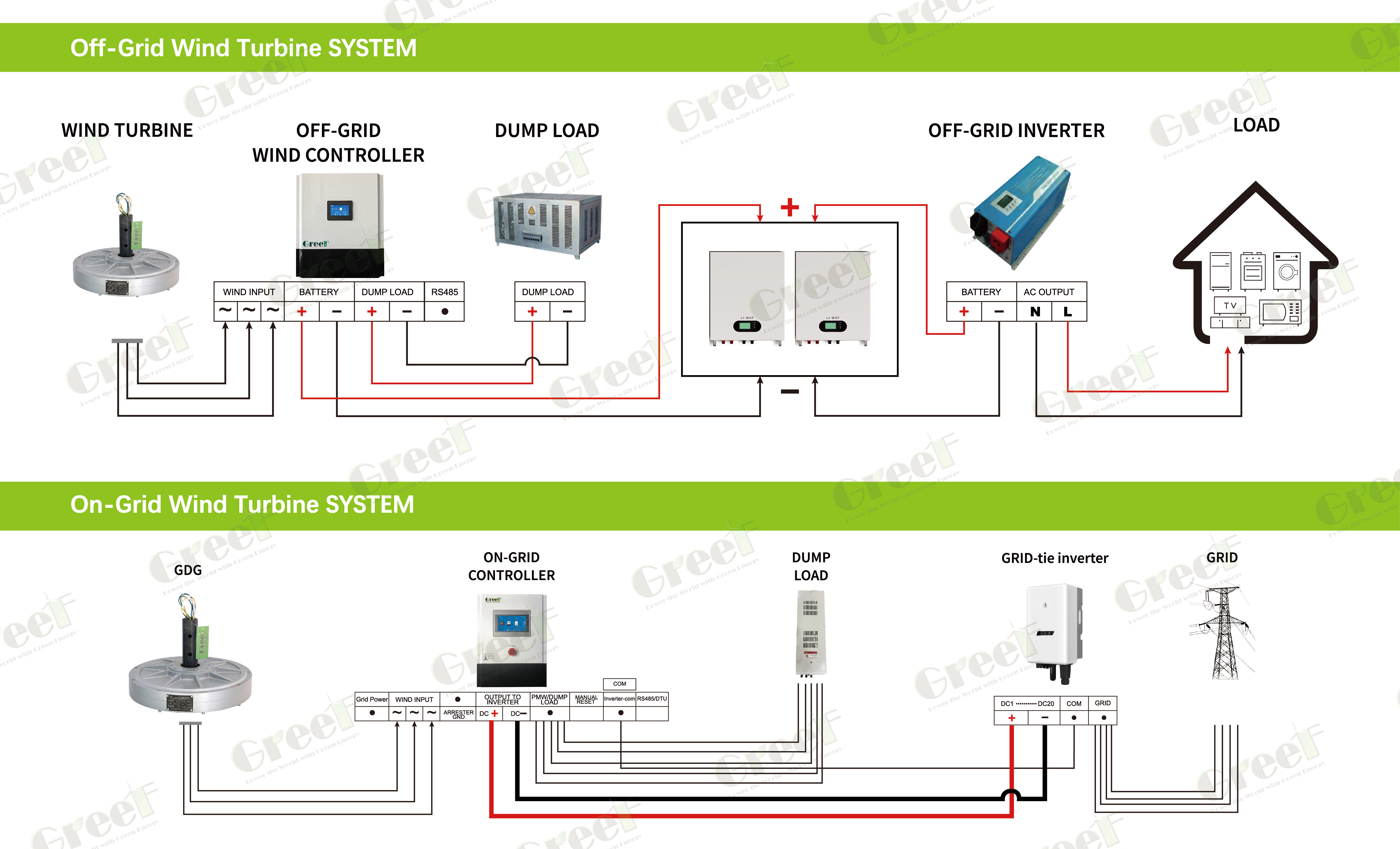

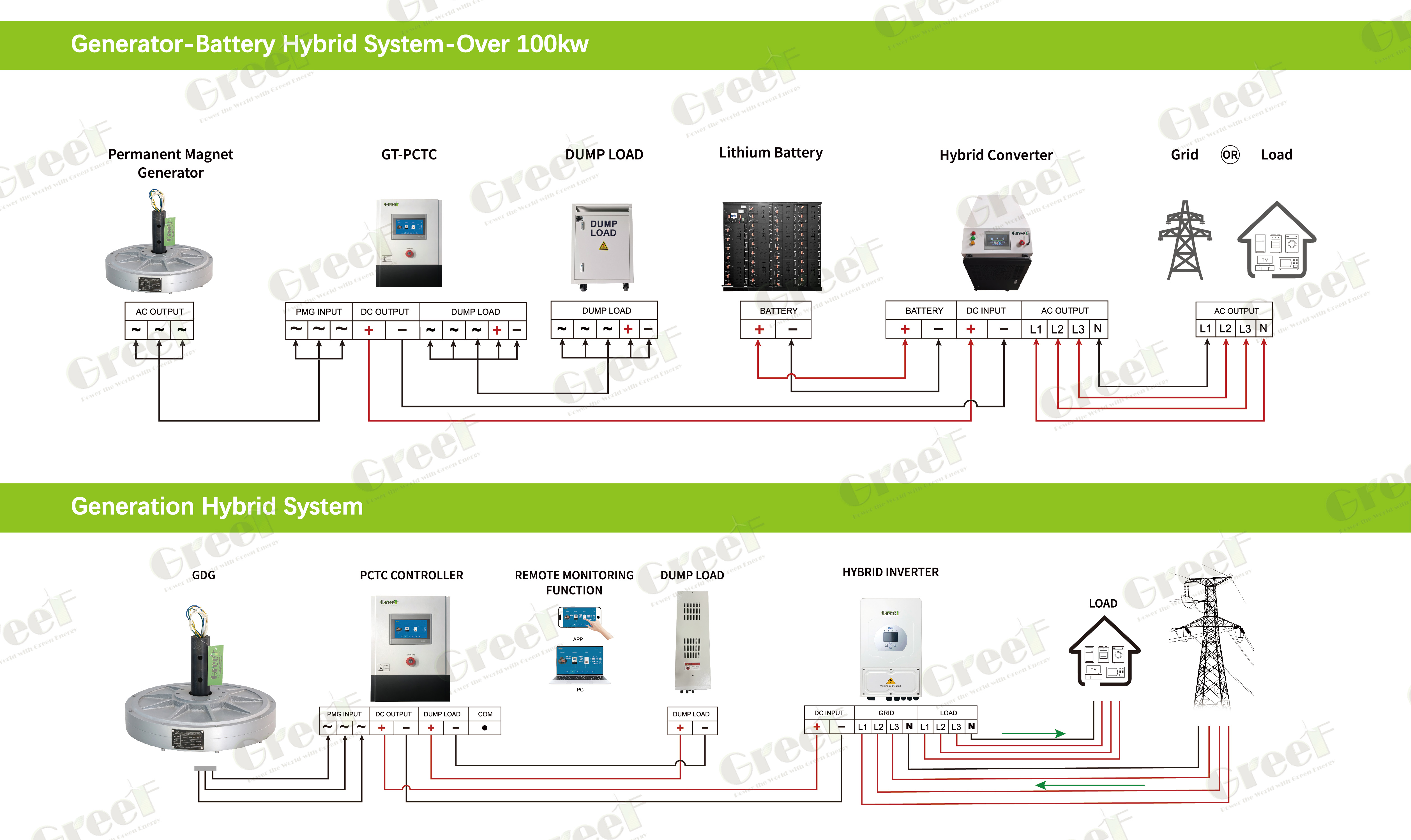

System Solution
Packaging
