Model

AH-50KW

Performance

Rated Power

50KW

Max Power

55KW

Start Wind Speed

2.5m/s(5.59mph)

Rated Wind Speed

14 m/s(22.37mph)

Working Wind Speed

3-30m/s(6.71-67.2 mph)

Safety Wind Speed

60 m/s(133.8mph)

Physical Parameters

Blades Length

6.2M(19.02ft)

Blades Rotor Diameter

14M(42.97ft)

Blades Material &Quantity

FRP /3PCS

Mill Weight

3000kg

Swept Area

148.2㎡

Tower Height

≥20m,Hot dip galvanized

Generator Parameters

Rated Speed

105 RPM

Rated voltage

400 Vac

Start Torque

<0.3N.M

Speed regulation method

Auto yawing+

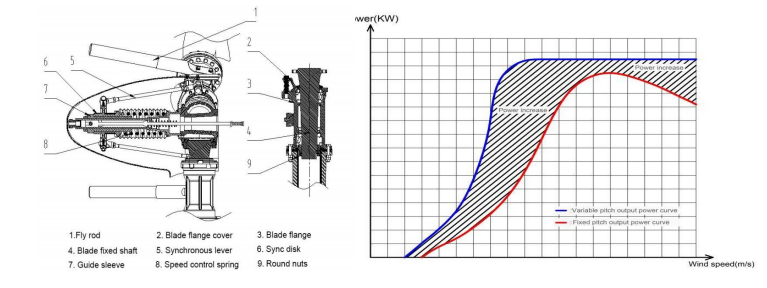

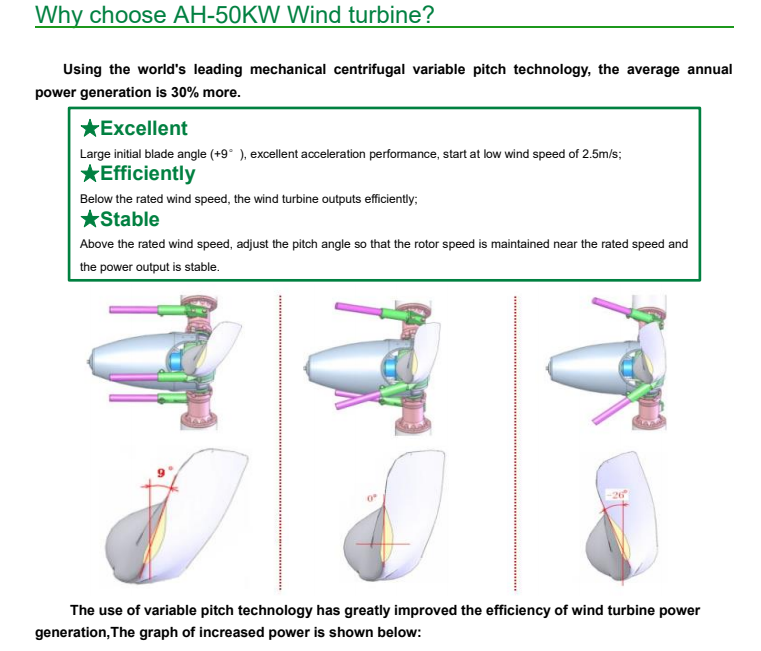

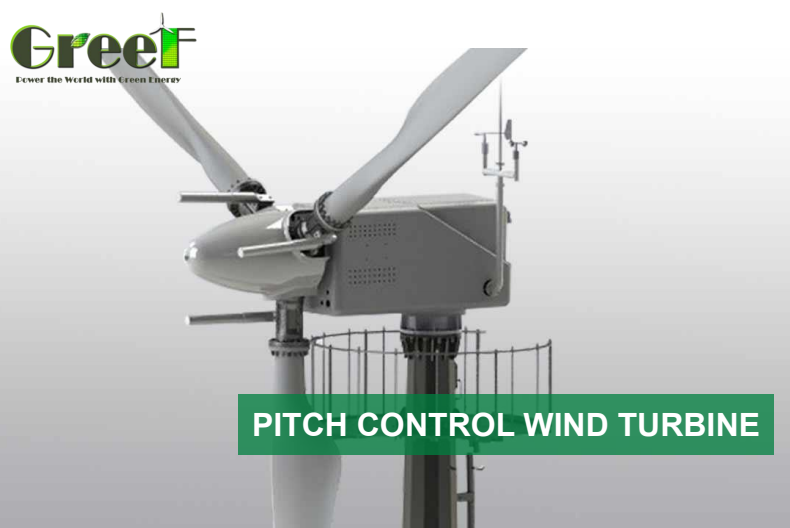

pitch-controlled

Wind answering method

Up wind+yawing

Stop method

Auto brake

Gale protection

Smart control+unattended

Protection Grade

IP54

Working Temperature

-20--+50℃

Life time

20 Years
