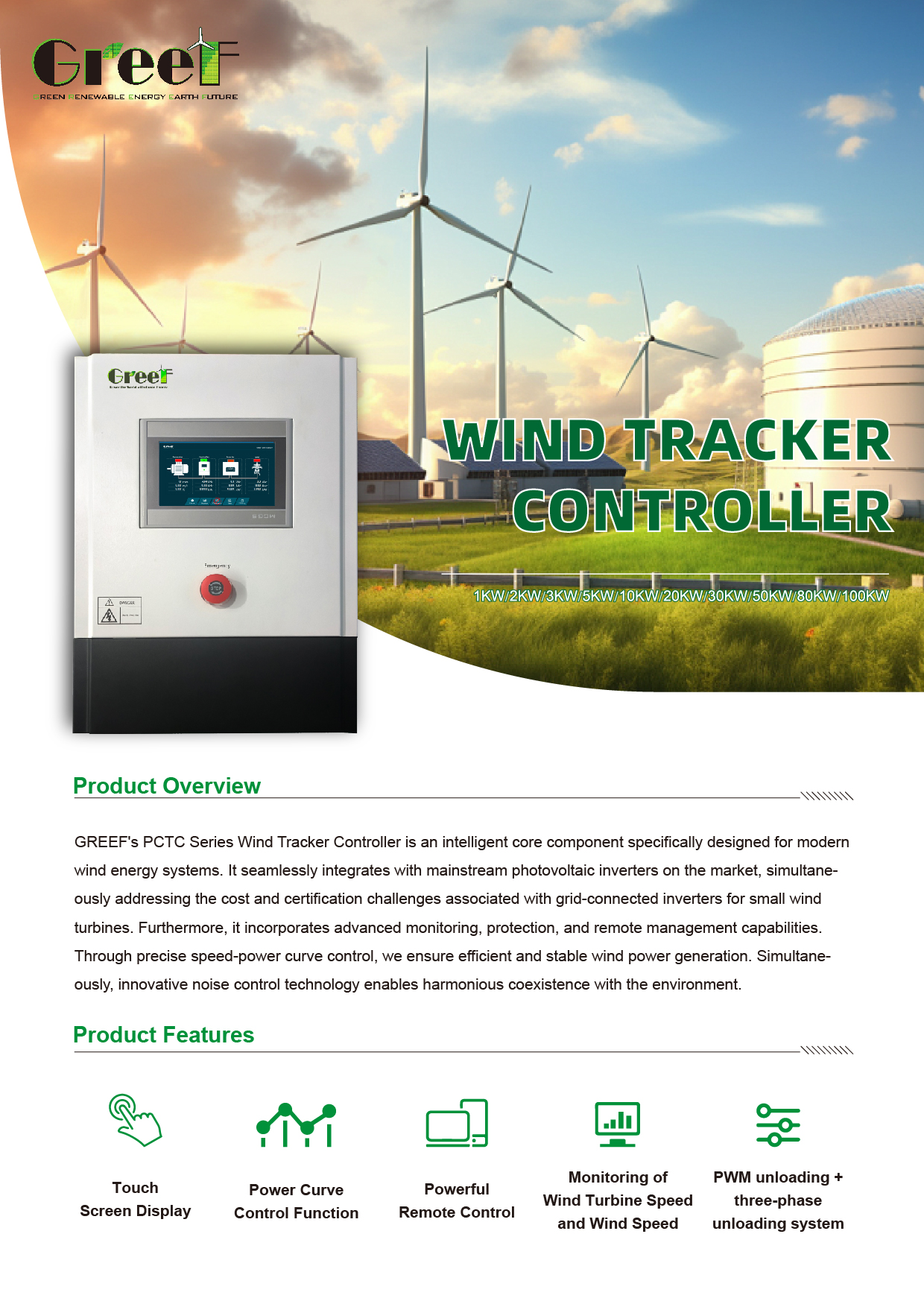

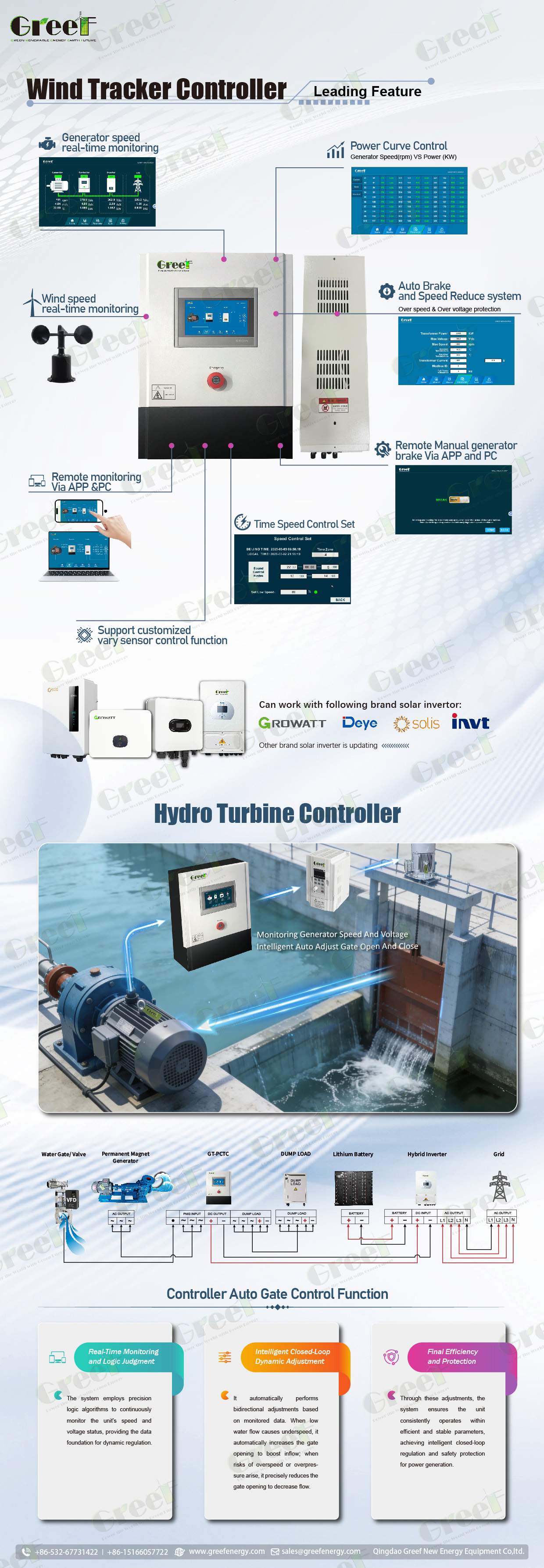

1-100kw PCTC Series Wind Tracker Controller
|
Model |
PCTC-1.5KW |
PCTC-2KW |
PCTC-3KW |
PCTC-5KW |
PCTC-10KW |
|
Wind turbine rated power |
1.5KW |
2KW |
3KW |
5KW |
10KW |
|
Wind turbine rated voltage |
AC220V-240V |
AC220V-240V |
AC220V-380V |
AC380-550V |
AC380-550V |
|
Function |
Rectifier,Control,DC output |
||||
|
Automatic protection function |
Over voltage protection, Grid cut off protection, Regulated supply output, Arrester |
||||
|
Manual function |
Manual brake, Reset, Emergency switch |
||||
|
Display mode |
LCD Touch Screen |
||||
|
Display content (larger one) |
Generator speed(rpm),Input voltage (Vdc), Input current(Vac) ,Output power(kW), Grid voltage (Vac),Grid current(A), Power generate today(kWh),Power generate this month, Power generate last month, Power generate this year, Power generate last year,Power Curve setting. |
||||
|
PWM constant voltage |
≥400dc |
≥400dc |
≥400dc |
≥700dc |
|
|
Wind turbine 3-phase dump load voltage |
450±5Vdc |
450±5Vdc |
450±5Vdc |
750±5Vdc |
750±5Vdc |
|
3-phase dump load time-lapse |
12-20 min |
12-20 min |
12-20 min |
12-20 min |
12-20 min |
|
Efficiency |
98% |
||||
|
Environment temperature |
-30-60°C |
||||
|
Relative humidity |
＜90% No condensation |
||||
|
Noise (1m) |
＜40dB |
||||
|
Degree of protection |
IP20(Indoor) IP65 (Outdoors) |
||||
|
Cooling method |
Forced air cooling |
||||
|
Communication interface (optional) |
RS485/USB/GPRS/WIFI/Ethernet |
||||
|
Controller Net Dimensions (mm) |
500*395*270 |
500*395*270 |
500*395*270 |
500*395*270 |
550*395*270 |
|
Controller Net Weight(kg) |
20 |
20 |
22 |
22 |
25 |
|
Dump Load Net Dimensions (mm) |
620*215*190 |
620*215*190 |
620*215*190 |
620*215*190 |
690*520*270 |
|
Dump Load Net Weight(kg) |
14 |
14 |
14 |
30 |
45 |
|
Packaging dimensions (mm) |
630* 440*650 |
740*640*410 |
740*640*410 |
750*700*400 |
725*610*690 |
|
Packaging weight (kg) |
46 |
47 |
48 |
52 |
73 |
|
Model |
PCTC-15KW |
PCTC-20KW |
PCTC-30KW |
|
Wind turbine rated power |
15KW |
20KW |
30KW |
|
Wind turbine rated voltage |
AC380-550V |
||
|
Function |
Rectifier,Control,DC output |
||
|
Automatic protection function |
Over voltage protection, Grid cut off protection, Regulated supply output, Arrester |
||
|
Manual function |
Manual brake, Reset, Emergency switch |
||
|
Display mode |
LCD Touch Screen |
||
|
Display content (larger one) |
Generator speed(rpm),Input voltage (Vdc), Input current(Vac) ,Output power(kW), Grid voltage (Vac),Grid current(A), Power generate today(kWh),Power generate this month, Power generate last month, Power generate this year, Power generate last year,Power Curve setting. |
||
|
PWM constant voltage |
≥700dc |
≥700dc |
≥700dc |
|
Wind turbine 3-phase dump load voltage |
750±5Vdc |
750±5Vdc |
750±5Vdc |
|
Wind turbine 3-phase dump load time-lapse |
12-20 min |
12-20 min |
12-20 min |
|
Efficiency |
98% |
||
|
Environment temperature |
-30-60°C |
||
|
Relative humidity |
＜90% No condensation |
||
|
Noise (1m) |
＜40dB |
||
|
Degree of protection |
IP20(Indoor) IP65 (Outdoors) |
||
|
Cooling method |
Forced air cooling |
||
|
Communication interface (optional) |
RS485/USB/GPRS/WIFI/Ethernet |
||
|
Controller Net Dimensions (mm) |
550*395*270 |
550*395*270 |
680*620*460 |
|
Controller Net Weight(kg) |
30.1 |
30.1 |
37 |
|
Dump Load Net Dimensions (mm) |
690*520*270 |
690*520*270 |
710*890*590 |
|
Dump Load Net Weight(kg) |
50 |
50 |
91 |
|
Packaging dimensions (mm) |
740*450*940 |
740*450*940 |
700*630*480 (Main Unit) 640*640*950 (Dump Load) |
|
Packaging weight (kg) |
86 |
98 |
53 (Main Unit) 125 (Dump Load) |
|
Model |
PCTC-50KW |
PCTC-80KW |
PCTC-100KW |
|
Wind turbine rated power |
50KW |
80KW |
100KW |
|
Wind turbine rated voltage |
AC380-550V |
AC450-600V |
AC450-600V |
|
Function |
Rectifier,Control,DC output |
||
|
Automatic protection function |
Over voltage protection, Grid cut off protection, Regulated supply output, Arrester |
||
|
Manual function |
Manual brake, Reset, Emergency switch |
||
|
Display mode |
LCD Touch Screen |
||
|
Display content (larger one) |
Generator speed(rpm),Input voltage (Vdc), Input current(Vac) ,Output power(kW), Grid voltage (Vac),Grid current(A), Power generate today(kWh),Power generate this month, Power generate last month, Power generate this year, Power generate last year,Power Curve setting. |
||
|
PWM constant voltage |
≥700dc |
≥700dc |
≥700dc |
|
Wind turbine 3-phase dump load voltage |
750±5Vdc |
750±5Vdc |
750±5Vdc |
|
Wind turbine 3-phase dump load time-lapse |
12-20 min |
12-20 min |
12-20 min |
|
Efficiency |
98% |
||
|
Environment temperature |
-30-60°C |
||
|
Relative humidity |
＜90% No condensation |
||
|
Noise (1m) |
＜40dB |
||
|
Degree of protection |
IP20(Indoor) IP65 (Outdoors) |
||
|
Cooling method |
Forced air cooling |
||
|
Communication interface (optional) |
RS485/USB/GPRS/WIFI/Ethernet |
||
|
Controller Net Dimensions (mm) |
710*620*460 |
964*770*1240 |
964*770*1240 |
|
Controller Net Weight(kg) |
50 |
70 |
80 |
|
Dump Load Net Dimensions (mm) |
660*660*1410 |
650*550*1650 |
650*650*1650 |
|
Dump Load Net Weight(kg) |
91 |
120 |
160 |
|
Packaging dimensions (mm) |
730*630*480 (Main Unit) 680*680*1430 (Dump Load) |
990*790*1290 (Main Unit) 700*600*1875 (Dump Load) |
990*790*1290 (Main Unit) 700*700*1875(Dump Load) |
|
Packaging weight (kg) |
61 (Main Unit) 135 (Dump Load) |
160 (Main Unit) 220 (Dump Load) |
185 (Main Unit) 290(Dump Load) |

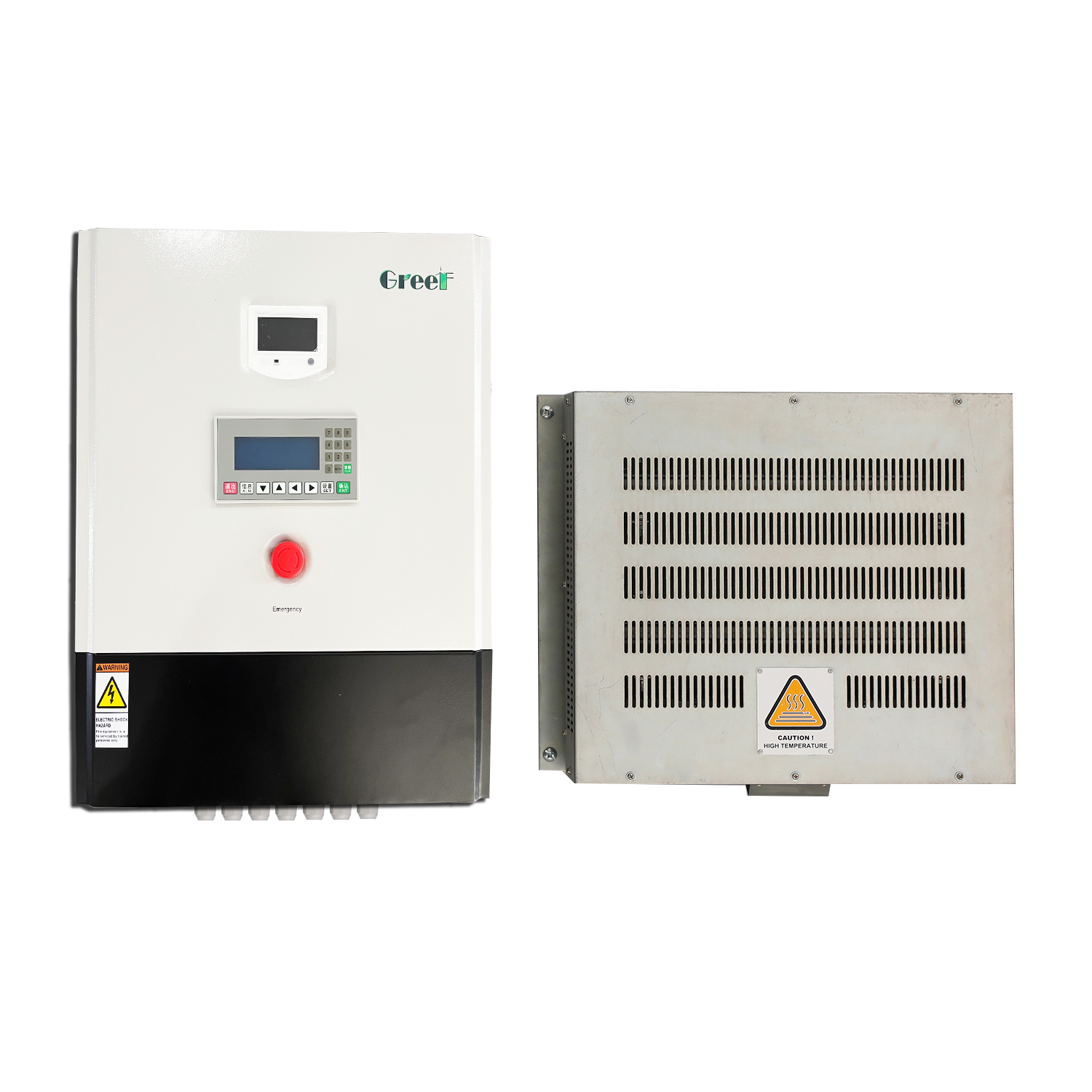

Greef has a professional team to create a tailor-made system for customers, this picture is an example, if you have other requirements, please contact us!
